General Crane Specification

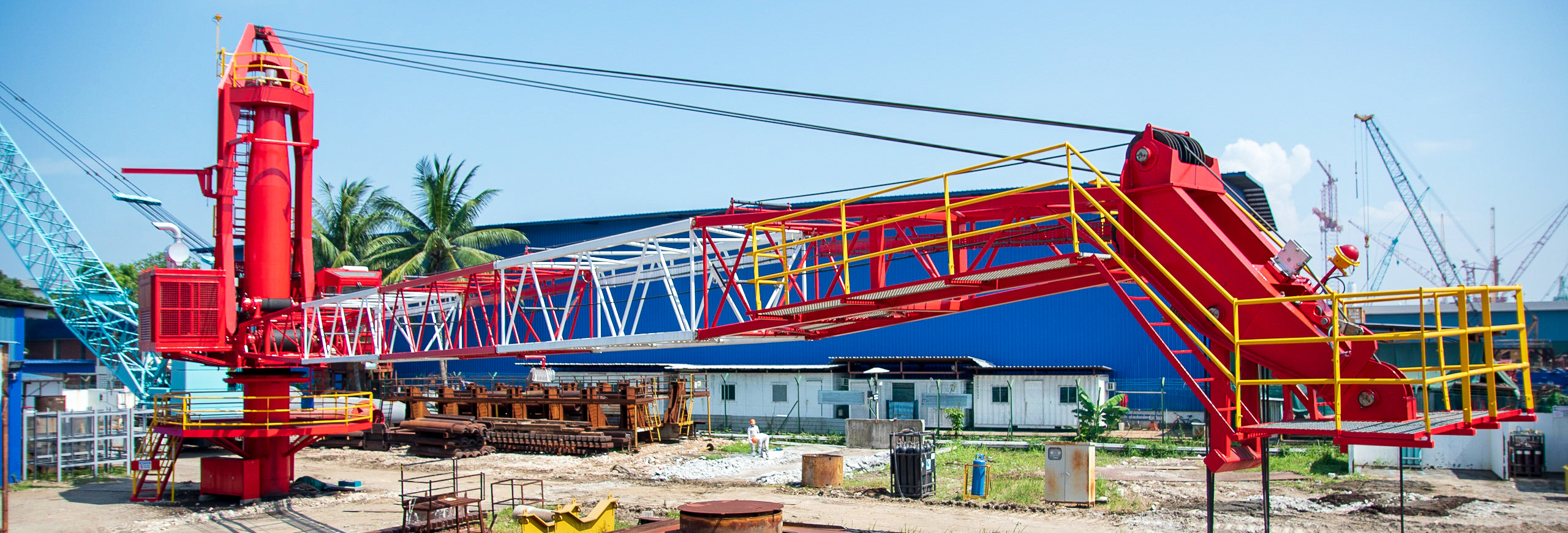

  • SH Cranes “King Post” Type Offshore Pedestal Crane
  • Diesel Engine or Electric Driven
  • Ambient Temp Structure – minus 10°C
  • Ambient Temp Operating – 0°C (no ice or snow formation) to 45°C / 55°C
Construction, Inspection and Design

Sea Hercules Cranes are registered under the American Petroleum Institute for Inspection and Servicing of Pedestal Cranes (API Q2).

The SH Cranes are designed, constructed and certified in compliance with the following regulations.

  • ABS- Certification of Cranes
  • American Petroleum Institute – API Specification 2C, Specification for Offshore 7th Edition with General Method
  • Significant Wave Heights for 0.5m, 1.0m, 1.5, 2.0m
Crane Models:
SH 1000 King Post Crane (100 Ft Boom)
SH 1000S / BMC 900 Crane 50,000 lbs @ 20 ft
22.3 MT @ 6.09 m
SH 1000 60,000 lbs @ 20 ft
26.7 MT @ 6.09 m
SH Enhanced 80,000 lbs @ 20 ft
35.7 MT @ 6.09 m
SH 2000 King Post Crane (120 Ft Boom)
SH 2000S 90,000 lbs @ 25 ft
40.1 MT @ 7.60 m
SH 2000 100,000 lbs @ 25 ft
44.6 MT @ 7.60 m
SH 2000S Enhanced 110,250 lbs @ 25 ft
49.2 MT @ 7.60 m
SH 2000 Enhanced 120,000 lbs @ 25 ft
53.5 MT @ 7.60 m
SH 2000SE – M 121,275 lbs @ 25 ft
54.1 MT @ 7.60 m
SH 3000 King Post Crane (120 Ft Boom)
SH 3000 180,000 lbs @ 30 ft
80.3 MT @ 9.14 m
SH 3000S Enhanced 200,000 lbs @ 30 ft
89.2 MT @ 9.14 m
SH 4500 King Post Crane (160 Ft Boom)
SH 4500 180,000 lbs @ 30ft
80.3 MT @ 9.14 m
SH 6000 King Post Crane (150 Ft Boom)
SH 6000 300,000 lbs @ 35 ft
133.9 MT @ 10.66 m
